Product Description

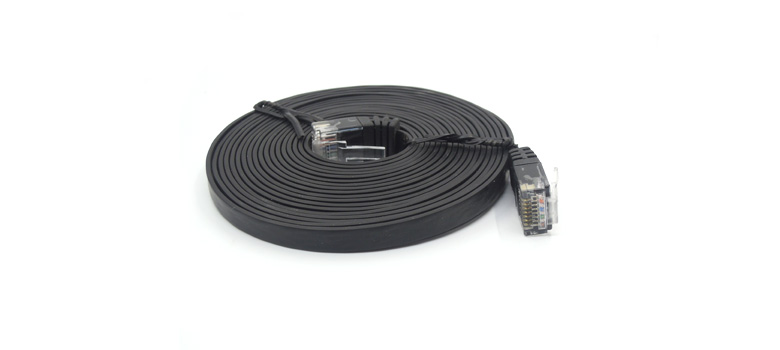

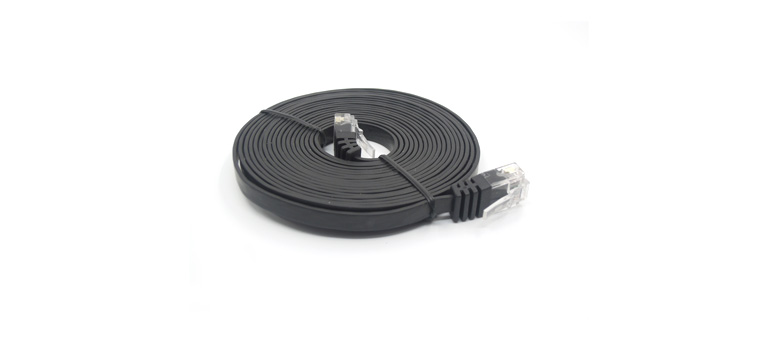

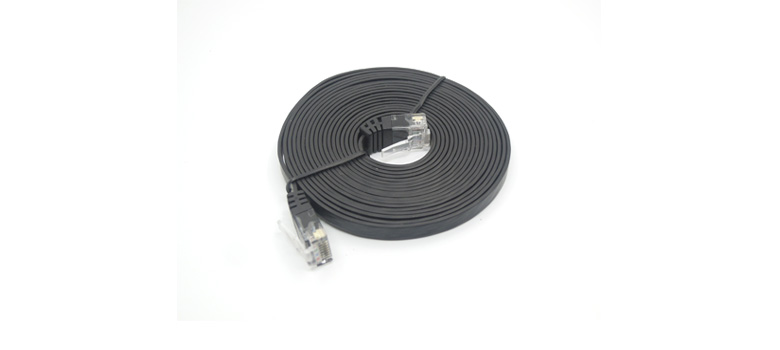

Umacable High Quality Cat5E U/UTP Unshielded Flat Patch Cable is perfect for connecting all kinds of LAN network components, such as PCs, Computer Servers, Printers, Routers, Switch Boxes, Network Media Players, NAS, VOIP Phones, POE devices, etc. Build your home or office network with 1000 Base-T Gigabit Ethernet. This cable meets or exceeds Category 5E performance in compliance with the TIA/EIA -568-C.2 specifications. The Flat Ethernet cables are super flexible and much easier to be managed when run under the carpet, doors, rotating arms and drawers or along walls. The flat design helps avoid tangled cords and saves space. The connectors with gold-plated contacts, molded strain-relief boots, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• High Quality CAT5E U/UTP Unshielded Flat Patch Cable
• The flat cable design makes the cabling flexible and easy at tight spaces
• Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
• Provides outstanding transmission performance and low signal losses
• Tested to 350 MHz and support 1000 Base-T Gigabit Ethernet
• A wired Cat 5E patch cable is more reliable and secure than a wireless network for your internet connections


Product Specifications

• Item No.: UMNW2005
• Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m 30m
• Available Gauge:  32AWG 30AWG
•Conductor: Bare Copper or Copper Clad Aluminum
•Color: Customized
• Jacket: PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant
• Vendor: Umacable

Electrical Characteristics

• Conductor DC Resistance – 89 Ohm/km (maximum)
• Insulation Resistance –100 Ohm/km (minimum)
• Dielectric Strength – 500 MV/m
• Propagation Delay –545ns/100m (maximum)
• Delay Skew – 45ns/100m (maximum)


Physical Characteristics:

• Voltage Rating –30V
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 32AWG Bare Copper
• Insulation – HDPE
• Color – White/Orange, White/Green, White/Blue, White/Brown
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 1.5±0.2*6.2±0.2mm

Nominal Transmission Characteristics:

Frequency Insertion Loss NEXT RL ACR-N ACR-F PS NEXT PSACR-N PSACR-F
(Mhz) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB)
1 3 60.2 17.0 57.0 57.3 57.2 61 61
4 4.5 53.2 17.0 49.2 45.5 50.5 48 48
10 7.0 47.0 17.0 39.8 37.6 44.1 41 41
16 9.0 43.4 17.0 34.6 33.2 40.6 36 36
20 10.2 42.3 17.0 31.9 31.4 39.0 34 34
31.25 12.9 38.6 15.1 25.8 27.4 35.8 31 31
62.5 18.5 33.5 12.0 15.0 21.0 30.6 25 25
100 24.1 30.0 10.1 6.2 17.1 27.2 21 21



Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.
