Product Description

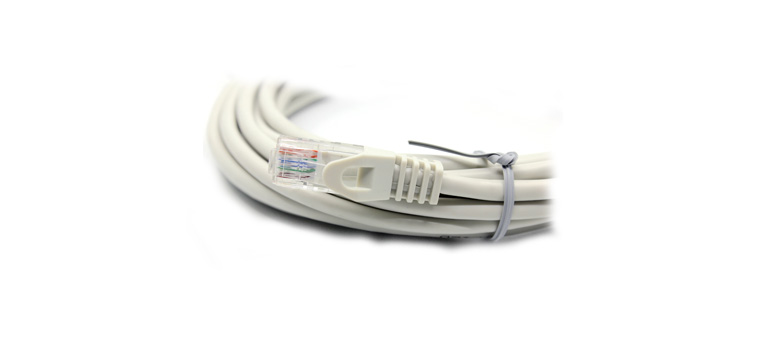

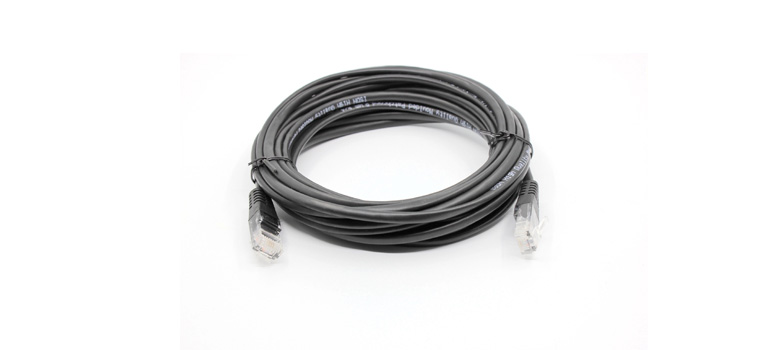

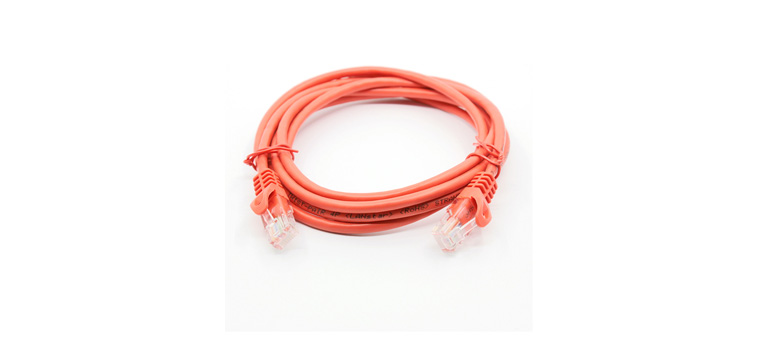

Umacable High Quality Cat5E U/UTP Unshielded Patch Cable is perfect for connecting all kinds of LAN network components, such as PCs, Computer Servers, Printers, Routers, Switch Boxes, Network Media Players, NAS, VOIP Phones, POE devices, etc. Build your home or office network with 1000 Base-T Gigabit Ethernet. This cable meets or exceeds Category 5E performance in compliance with the TIA/EIA -568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat5E U/UTP cable with high bandwidth of up to 350 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• High Quality CAT5E U/UTP Unshielded Patch Cable
• Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
• Provides outstanding transmission performance and low signal losses
• Tested to 350 MHz and support 1000 Base-T Gigabit Ethernet
• A wired Cat 5E patch cable is more reliable and secure than a wireless network for your internet connections


Product Specifications

• Item No.: UMNW2001
• Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m 30m 50m 75m
• Available Gauge: 28AWG 26AWG 24AWG
•Conductor: Bare Copper or Copper Clad Aluminum
•Color: Customized
• Jacket: PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant
• Vendor: Umacable

Electrical Characteristics

• Conductor DC Resistance – 89 Ohm/km (maximum)
• Insulation Resistance –100 Ohm/km (minimum)
• Dielectric Strength – 500 MV/m
• Propagation Delay –545ns/100m (maximum)
• Delay Skew – 45ns/100m (maximum)


Physical Characteristics:

• Voltage Rating –30V
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 24AWG Bare Copper
• Insulation – HDPE
• Color – White-Orange/Orange, White-Green/Green, White-Blue/Blue, White-Brown/Brown
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 5.2±0.2mm

Nominal Transmission Characteristics:

Frequency Insertion Loss NEXT RL ACR-N ACR-F PS NEXT PSACR-N PSACR-F
(Mhz) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB)
1 3 60.2 17.0 57.0 57.3 57.2 61 61
4 4.5 53.2 17.0 49.2 45.5 50.5 48 48
10 7.0 47.0 17.0 39.8 37.6 44.1 41 41
16 9.0 43.4 17.0 34.6 33.2 40.6 36 36
20 10.2 42.3 17.0 31.9 31.4 39.0 34 34
31.25 12.9 38.6 15.1 25.8 27.4 35.8 31 31
62.5 18.5 33.5 12.0 15.0 21.0 30.6 25 25
100 24.1 30.0 10.1 6.2 17.1 27.2 21 21



Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.


Product Support

• Download the Technical specifications

Within 8 hours if all details are provided well .you can call us at 0086 574 8704 2335 for a urgent inquiry .
FREE sample can be provided soon if quotation are confirmed, shipping fee should paid by yourself.
1000 pcs per item or 3000 meter raw cables in a single specification.
Our normal delivery time for sample is 3-5 days, and for mass production is 15-25 days.
FOB, CIF, EXW, DDU, DDP are all available, we are also able to provide a cheapest and high efficient Transportation solutions for you .
For first time, we only accept T/T in deposit, after established stable and good business relationship, we accept L/C and Open Credit (OA), Paypal and West Union are also available.
We guarantee all our products a Lifetime Warranty.
