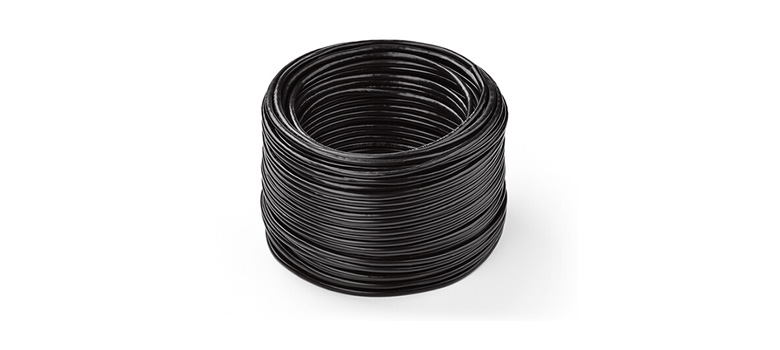

Umacable High Quality Cat6 F/UTP Shielded Network Cable is an ideal solution for making a network connecting in a noisy, EMI/RFI environment. This cable meets all of the ANSI/TIA-568-C.2 specifications. The F/UTP shielding structure provides protection from EMI/RFI noise and electromagnetic interference makes a well Attenuation and Crosstalk performance. This cable features markings in foot or meter, which marks the exact amount of cable remaining in the box, and a wide opening for the pull out design, which reduces tension on the wire as it is pulled during installation. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• High Quality CAT6 F/UTP Shielded Network Cable
• Al-Foil shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
• Meets ANSI/TIA-568-C.2 and ISO/IEC 11801 Specification
• Tested to 500 MHz and support 1000 Base-T Gigabit Ethernet
• Foot or Meter marked to show the amount of cable left in the box


Product Specifications

• Item No.: UMNW1102
• Available Length: 100m, 305m
• Available Gauge: 23AWG Solid
•Conductor: Bare Copper or Copper Clad Aluminum
•Color: Customized
• Jacket: PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing: Easy Pull Box
• Approval: RoHS Compliant
• Vendor: Umacable

Electrical Characteristics

• Impedance – 100±15(Ohms) @ 1-250MHz
• DC Resistance Unbalance (%) – Max 2.5
• DC Resistance 20℃ – 8.4 (Ohms/100m)
• Pair-to-Ground Capacitance Unbalance – 330(pF/100M)
• Insulation Resistance – >5000 MΩ*Km


Physical Characteristics:

• Dielectric Strength – DC 2500V 2S
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 23AWG Solid Bare Copper
• Insulation – HDPE
• Color – White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown
• Drain Wire – 23AWG Bare Copper
• Shield – Aluminum Foil, 100% Coverage
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 7.0±0.2mm

Nominal Transmission Characteristics:



Frequency RL(min) IL(min) DOP(max) Delay Skew (max) NEXT(min) PSNEXT(min) ACR-F(min) PSACR-F(min)
(Mhz) (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2 570 45 74 72 67.8 64.8
4 23.0 3.8 552 45 65 63 55.7 52.7
10 25.0 6.0 545 45 59 57 47.8 44.8
16 25.0 7.6 543 45 56 54 43.7 40.7
20 25.0 8.5 542 45 55 53 41.7 38.7
31.25 23.6 10.7 540 45 52 50 37.9 34.9
62.5 21.5 15.4 538 45 47 45 31.8 28.8
100 20.1 19.8 537 45 44.3 42.3 27.8 24.8
200 18.0 29.0 536 45 39.7 37.7 21.7 18.7
250 17.3 32.8 535 45 38 36 19.8 16.8



Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.
