Product Description

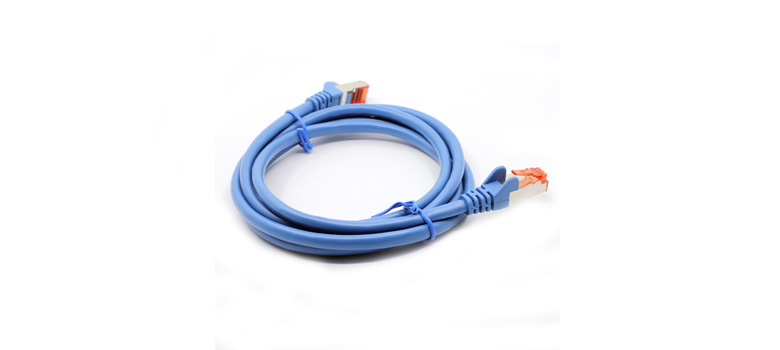

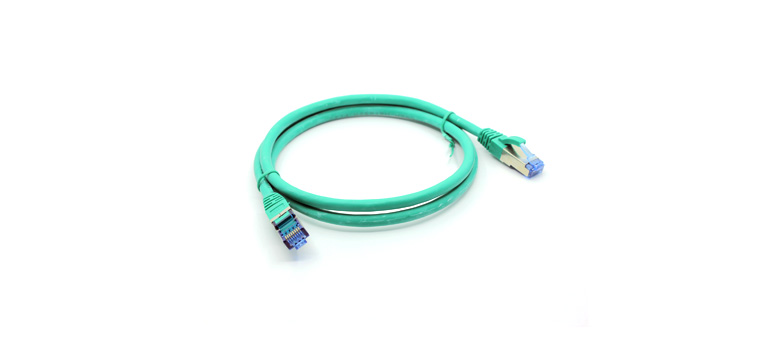

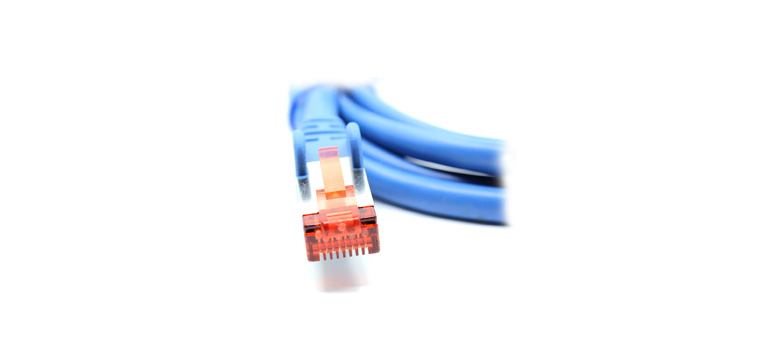

Umacable High Quality Cat6 SF/UTP (PIMF) Double Fully Shielded Patch Cable is an ideal solution for making a network connecting in a noisy, EMI/RFI environment. Build your home or office network with 1000 Base-T Gigabit Ethernet. The SF/UTP Double Fully shielding provides protection from EMI/RFI noise and electromagnetic interference makes a well Attenuation and Crosstalk performance. This cable meets or exceeds Category 6 performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat6 SF/UTP cable with high bandwidth of up to 500 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• High Quality CAT6 SF/UTP (PIMF) Double Fully Shielded Patch Cable
• Pair in Metal Foil (PIMF) shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
• Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
• Provides outstanding transmission performance and low signal losses
• Tested to 500 MHz and support 1000 Base-T Gigabit Ethernet
• A wired Cat 6 patch cable is more reliable and secure than a wireless network for your internet connections


Product Specifications

• Item No.: UMNW2104
• Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m 30m 50m 75m
• Available Gauge: 28AWG 26AWG 24AWG
•Conductor: Bare Copper or Copper Clad Aluminum
•Color: Customized
• Jacket: PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant
• Vendor: Umacable

Electrical Characteristics

• Conductor DC Resistance –93.8 Ohm/km (maximum)
• Insulation Resistance –100 Ohm/km (minimum)
• Capacitance – 5600pf/100m
• Propagation Delay –545ns/100m (maximum)
• Delay Skew – 45ns/100m (maximum)


Physical Characteristics:

• Voltage Rating –30V
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 26AWG Bare Copper
• Insulation – HDPE
• Color –White /Orange, White /Green, White /Blue, White /Brown
• Braid – 16/5/0.12 Aluminum Magnesium
• Shield – Aluminum Foil, 100% Coverage
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 6.2±0.2mm

Nominal Transmission Characteristics:

Frequency Insertion Loss NEXT RL ACR-N ACR-F PS NEXT PSACR-N PSACR-F
(Mhz) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB)
1 3.0 65.0 19.0 62.0 63.4 62 29.1 60.4
4 4.0 63.0 19.0 59.0 51.3 60.6 56.6 48.2
10 6.2 56.5 19.0 50.3 43.4 54.1 47.8 40.4
16 8.0 53.3 18.0 45.2 39.3 50.7 42.7 36.3
20 9.0 51.5 17.6 42.7 37.3 19.0 39.9 34.4
31.25 11.6 48.5 16.5 37.1 33.5 45.8 34.4 30.5
62.5 16.5 43.4 14.1 26.9 27.4 40.8 24.2 24.5
100 21.1 39.8 12.1 18.7 23.5 37.2 15.9 20.4
200 31.6 34.7 9.2 3.1 17.3 32.0 0.3 14.5
250 35.9 33.0 8.1 -2.8 15.5 30.1 -5.8 12.4



Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.
