3.5mm Stereo Panel-mount cable, female to female cable, 0.2 meter 3.5mm jack cable which is a perfect ideal for custom fit installations

Part # :                      UMPM1003

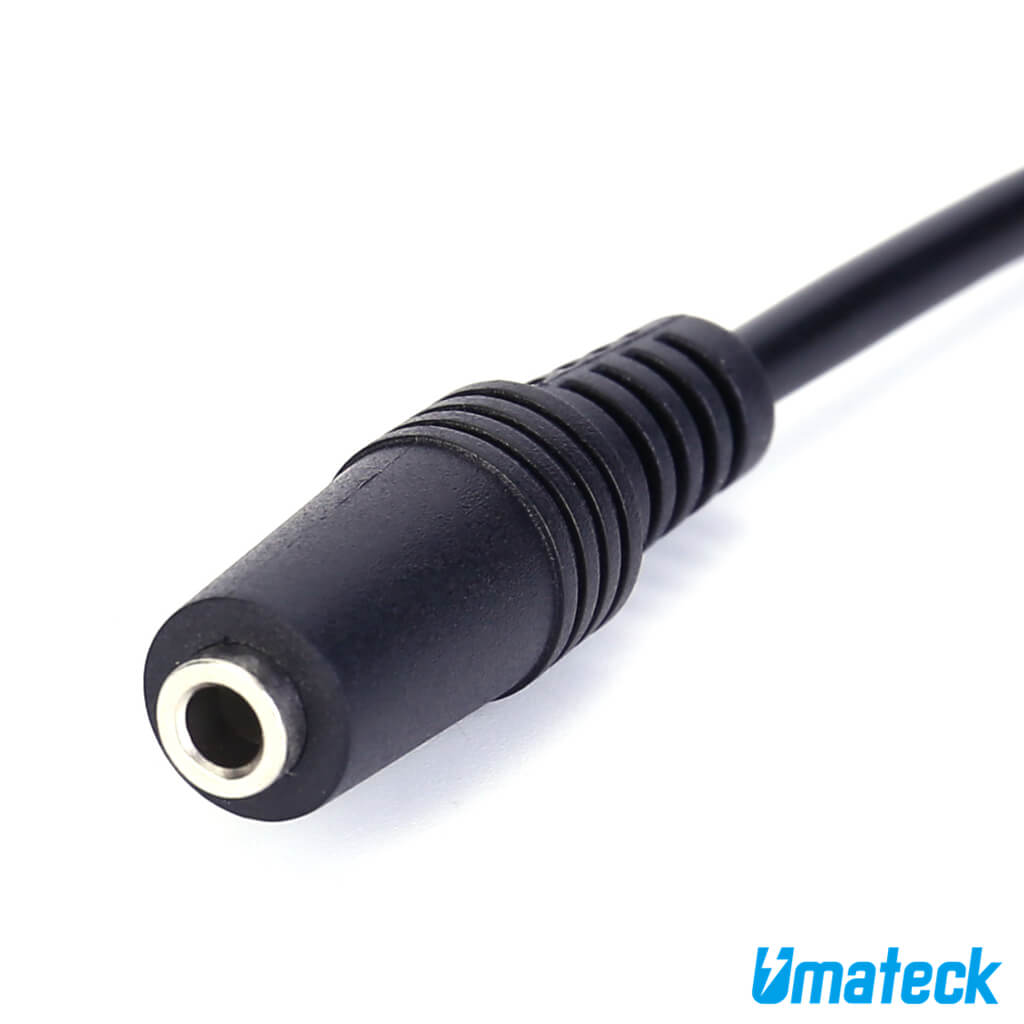

Connector 1 :          3.5mm stereo female

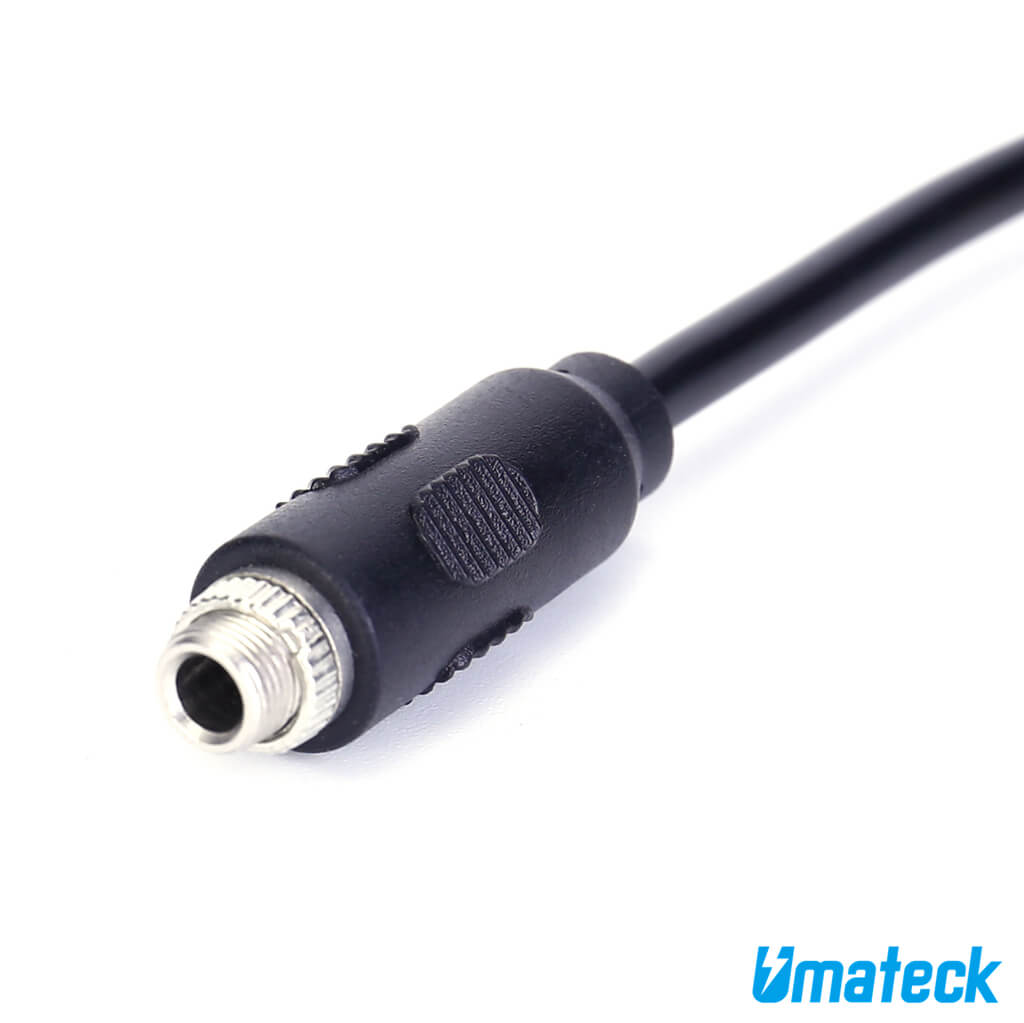

Connector 2 :          3.5mm stereo female with screw

MOQ:                       500 PCS

Lead time:               15-30 days

Request FREE Sample for evaluation !

Inquiry Now

Umateck High Quality 3.5 mm Female to Female Panel Mount Cable is perfect for combining two 3.5 mm Stereo cables to achieve connectivity through a panel. This allows the user to provide connectivity from a source that is contained within a secure location. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umateck lifetime warranty. .

Key Features

• High Quality 3.5mm Female to Female Panel Mount cable
• The screw design helps to connect the device tightly
• Convenient way to combine two 3.5mm Stereo cables through a panel without any signal loss
• Seamlessly transmits stereo audio for high quality sound while ensuring reliability and reducing signal loss and noise
• Flexible PVC jacket and bare copper conductors make a better performance

3.5mm Stereo female to female Panel-Mount audio cable

Part # UMPM1003
Brand Name Umateck
Category 3.5mm Stereo female to female Panel-Mount cable
Length 20 cm
Color  white, yellow, red
Approval  CE, RoHS, REACH
Warranty   Lifetime
Package Zip bag , color box , blister or Customized

Electrical Characteristics

• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 10MΩ

Physical Characteristics:

• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductor 1 (2 cores)
• Conductor Type – 24AWG Bare Copper
• Insulation – Foamed PE SKIN
Overall Cable
• Spiral Wire – 24AWG Bare Copper
• Jacket – PVC, Black, O.D.: 4.0±0.2mm
Connectors
• Connector Type – 3.5mm Female
• Injection – 45P PVC
• Plating – Nickel
