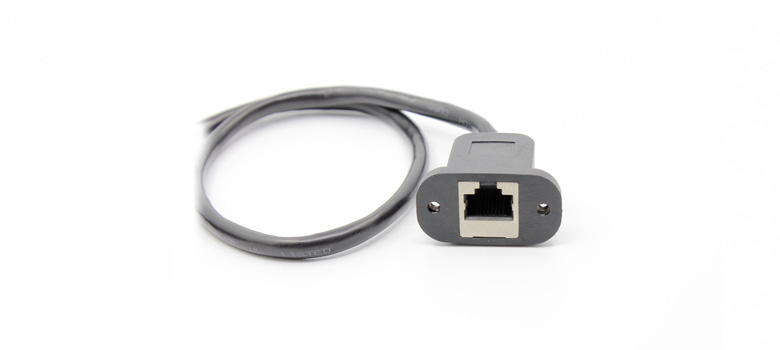

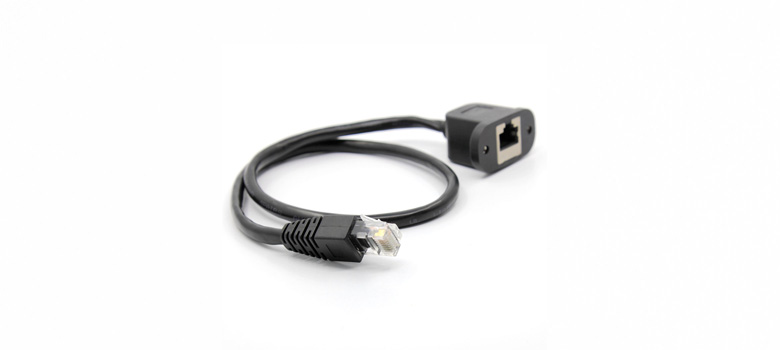

Panel Mount Extension Cable Cat5E F/UTP #UMPM7004

Product Info

Product Description

Umacable High Quality Cat5E F/UTP Male to Female Panel Mount Extension Cable is perfect for extending the connection between all kinds of LAN network components through a panel. This allows the user to provide connectivity from a source that is contained within a secure location. It meets or exceeds Category 5E performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat5E cable with high bandwidth of up to 350 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.

Key Features

High Quality CAT5E F/UTP Shielded Male to Female Panel Mount Extension Cable
The screw design helps to connect the device tightly
Convenient way to extend the connection between all kinds of LAN network components through a panel
Al-Foil shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
Provides outstanding transmission performance and low signal loss
Tested to 350 MHz and support 1000 Base-T Gigabit Ethernet

Product Specifications

• Item No.:	UMPM7004
• Available Length:	0.2m 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m
• Available Gauge:	26AWG 24AWG
• Color:	Black or Customized
• Nylon mesh:	Customized
• Ferrite Core:	Customized
• Connector:	Gold or Nickel plated
• Packing:	PE bag, Zip bag, Box, Hang card, Blister
• Approval:	RoHS Compliant
• Vendor :	Umacable

Electrical Characteristics

Conductor DC Resistance – 89 Ohm/km (maximum)
Insulation Resistance –100 Ohm/km (minimum)
Dielectric Strength- 500 MV/m
Propagation Delay –545ns/100m (maximum)
Delay Skew- 45ns/100m (maximum)

Physical Characteristics:

Voltage Rating–30V
Temperature Rating – 80℃
Operating Temperature Range – -20℃- 80℃
Storage Temperature Range – -25℃- 85℃
Approvals – RoHS, CE, UL Compliant

Conductors (4 pairs)

Conductor Type – 24AWG Bare Copper
Insulation – HDPE
Color –White-Orange/Orange, White-Green/Green, White-Blue/Blue, White-Brown/Brown
Drain Wire – 24AWG Bare Copper
Shield – Aluminum Foil, 100% Coverage

Overall Cable

Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 5.5±0.2mm

Nominal Transmission Characteristics:

Frequency	Insertion Loss	NEXT	RL	ACR-N	ACR-F	PS NEXT	PSACR-N	PSACR-F
(Mhz)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)
1	3	60.2	17.0	57.0	57.3	57.2	61	61
4	4.5	53.2	17.0	49.2	45.5	50.5	48	48
10	7.0	47.0	17.0	39.8	37.6	44.1	41	41
16	9.0	43.4	17.0	34.6	33.2	40.6	36	36
20	10.2	42.3	17.0	31.9	31.4	39.0	34	34
31.25	12.9	38.6	15.1	25.8	27.4	35.8	31	31
62.5	18.5	33.5	12.0	15.0	21.0	30.6	25	25
100	24.1	30.0	10.1	6.2	17.1	27.2	21	21
