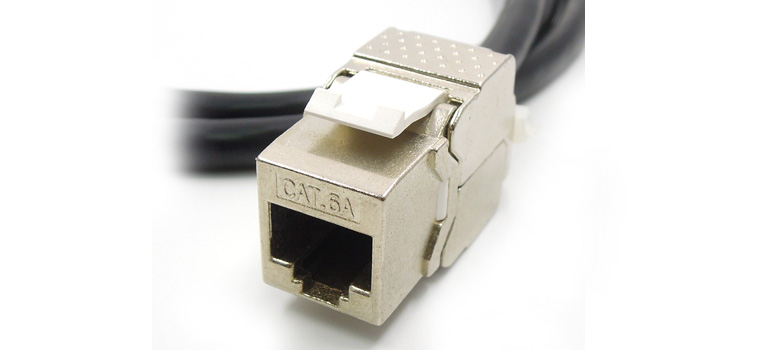

Umacable High Quality Cat6A SF/UTP (PIMF) Double Fully Shielded Female to Female Patch Cable is perfect for combining two Patch cables in a noisy, EMI/RFI environment to achieve connectivity. Build your home or office network with 10GBase-T Gigabit Ethernet. The SF/UTP Double Fully shielding provides protection from EMI/RFI noise and electromagnetic interference makes a well Attenuation and Crosstalk performance. This cable meets or exceeds Category 6A performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts and metal housing, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat6A cable with high bandwidth of up to 500 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.



Key Features

  • High Quality Cat6A SF/UTP (PIMF) Double Fully Shielded Female to Female Patch Cable
  • Convenient way to combine two Patch cables in a noisy, EMI/RFI environment to achieve connectivity
  • Pair in Metal Foil (PIMF) shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
  • Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
  • Provides outstanding transmission performance and low signal losses
  • Tested to 500 MHz and support 10GBase-T Gigabit Ethernet

Product Specifications

• Item No.: UMPM7003
• Available Length: 0.2m 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m
• Available Gauge: 28AWG 27AWG 26AWG
• Color: Black or Customized
• Jacket : PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Ferrite Core: Customized
• Connector: Gold or Nickel plated
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant
• Vendor : Umacable



Electrical Characteristics

  • Conductor DC Resistance –93.8 Ohm/km (maximum)
  • Insulation Resistance –100 Ohm/km (minimum)
  • Capacitance- 5600pf/100m
  • Propagation Delay –545ns/100m (maximum)
  • Delay Skew- 45ns/100m (maximum)

Physical Characteristics:  • Voltage Rating –30V

  • Temperature Rating – 80℃
  • Operating Temperature Range – -20℃- 80℃
  • Storage Temperature Range – -25℃- 85℃
  • Approvals – RoHS, CE, UL Compliant

Conductors (4 pairs)

  • Conductor Type – 26AWG Bare Copper
  • Insulation – HDPE
  • Color –White /Orange, White /Green, White /Blue, White /Brown
  • Braid – 16/5/0.12 Aluminum Magnesium
  • Shield – Aluminum Foil, 100% Coverage

Overall Cable

  • Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CM
  •  O.D. – 6.5±0.2mm



Nominal Transmission Characteristics:

Frequency Insertion Loss NEXT RL ACR-N ACR-F PS NEXT PSACR-N PSACR-F
(Mhz) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB)
1 3.0 65.0 19.0 62.0 63.4 62 59.2 60.4
4 4.3. 63.0 19.0 59.0 51.3 60.6 56.5 48.2
10 6.6 56.5 19.0 50.3 43.4 54.1 47.5 40.4
16 8.2 53.3 18.0 45.2 39.3 50.7 42.7 36.3
20 9.2 51.5 17.6 42.7 37.3 19.0 39.9 34.4
31.25 11.6 48.5 16.5 37.1 33.5 45.8 34.4 30.5
62.5 16.5 43.4 14.1 26.9 27.4 40.8 24.2 24.5
100 21.1 39.8 12.1 18.7 23.5 37.2 15.9 20.4
200 30.2 34.7 9.2 4.6 17.3 32.0 1.8 14.5
250 34.5 33.0 8.1 -0.8 15.5 30.1 -3.8 12.4
350 40.9 30.4 6.7 -10.2 12.3 27.4 -13.4 9.5
500 49.8 26.3 6.1 -23.1 9.2 23.3 -26.4 6.4
