Product Description

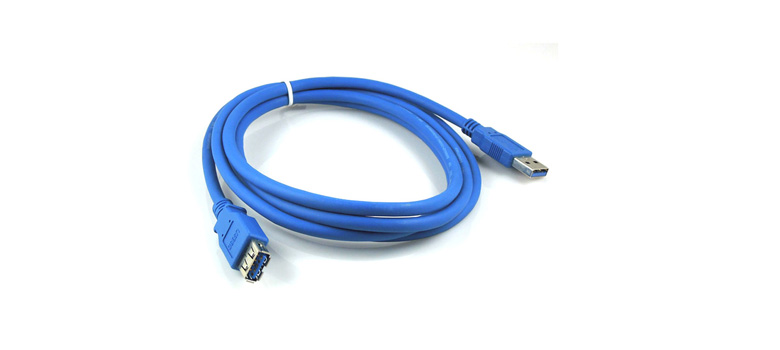

Umacable High Quality USB 3.0 A Male to A Female Extension Cable is perfect for your keyboards, mice, modems and other USB peripherals equipped with USB 3.0 A port. It helps to extend the connection between your USB cables and devices. This cable provides a transfer rate up to 4.8 Gbps when connected with a USB 3.0 compliant host and device, which is 10 times faster than USB 2.0 cable. Foil and braid shielding provide complete immunity to EMI/RFI interference, and the twisted pair construction helps reduce crosstalk thus ensuring high speed, error-free data transfer. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• Super Speed USB 3.0 A Male to A Female Extension Cable
• Convenient way to extend your existing USB cable without any signal loss
• Support Super speed USB 3.0 devices and the transfer rate reaches to 4.8 Gbps
• Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
• Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance
Note: USB 3.0 (4.8 Gbps) provides TEN TIMES the capability of USB 2.0 (480 Mbps); it also provides up to 900 mA power instead of the 500 mA available with USB 2.0. Type A connections are backwards compatible to USB 2.0 and even USB 1.1. Finally, while USB 2.0 cables will work with USB 3.0 devices (at the lower USB 2.0 transmission speed and power), you won’t enjoy the Super Speed of USB 3.0 without connecting with USB 3.0 cables!


Product Specifications

• Item No.: UMUB2002
• Available Length: 0.5m 1m 1.5m 1.8m 3m 5m
• Available Gauge: 28/28/28AWG(0.5-1.8m) 28/28/26AWG( 3-5m)
• Color: Black or Customized
• Nylon mesh: Customized
• Ferrite Core: Customized
• Connector: Gold or Nickel plated
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant
• Vendor : Umacable



Electrical Characteristics

• Nominal Velocity of Propagation – 480Mbps
• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 10MΩ


Physical Characteristics:

• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductor 1 (2 pairs)
• Conductor Type – 28AWG Bare Copper
• Insulation – Foamed PE SKIN
• Drain Wire – 28AWG Bare Copper
• Shield – Aluminum Foil, 100% Coverage
Conductor 2 (1 pair)
• Conductor Type – 28AWG Bare Copper
• Insulation – HDPE
• Shield – Aluminum Foil, 100% Coverage
Conductor 3 (2 conductors)
• Conductor Type – 28AWG Bare Copper
• Insulation – HDPE
Overall Cable
• Drain Wire – 30AWG Copper Clad Steal
• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/5/0.12, Al/Mg
• Jacket – PVC, Black, O.D.: 5.5±0.2mm
Connector 1
• Connector Type – USB 3.0 A Male
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
Connector 2
• Connector Type – USB 3.0 A Female
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel


Product Support

• Download the Technical specifications

Within 8 hours if all details are provided well .you can call us at 0086 574 8704 2335 for a urgent inquiry .
FREE sample can be provided soon if quotation are confirmed, shipping fee should paid by yourself.
1000 pcs per item or 3000 meter raw cables in a single specification.
Our normal delivery time for sample is 3-5 days, and for mass production is 15-25 days.
FOB, CIF, EXW, DDU, DDP are all available, we are also able to provide a cheapest and high efficient Transportation solutions for you .
For first time, we only accept T/T in deposit, after established stable and good business relationship, we accept L/C and Open Credit (OA), Paypal and West Union are also available.
We guarantee all our products a Lifetime Warranty.
