Product Description

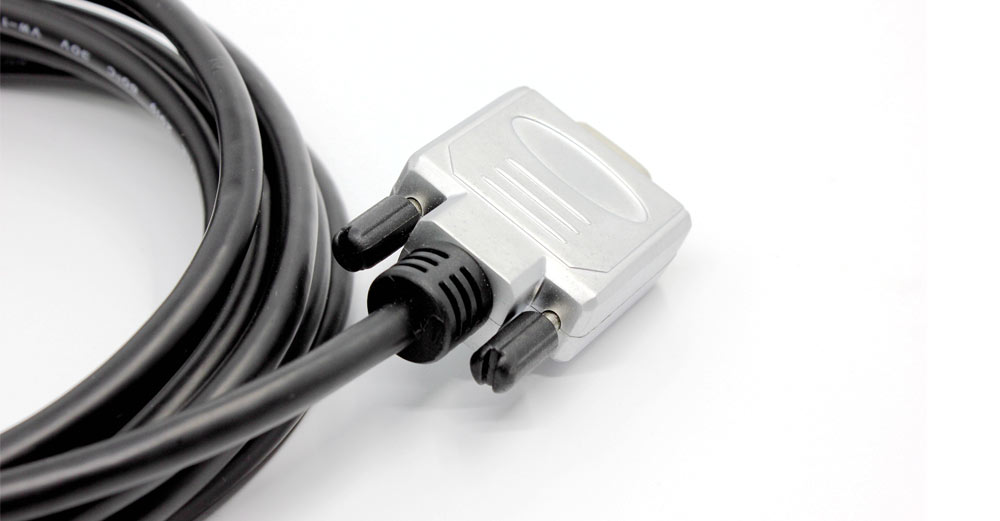

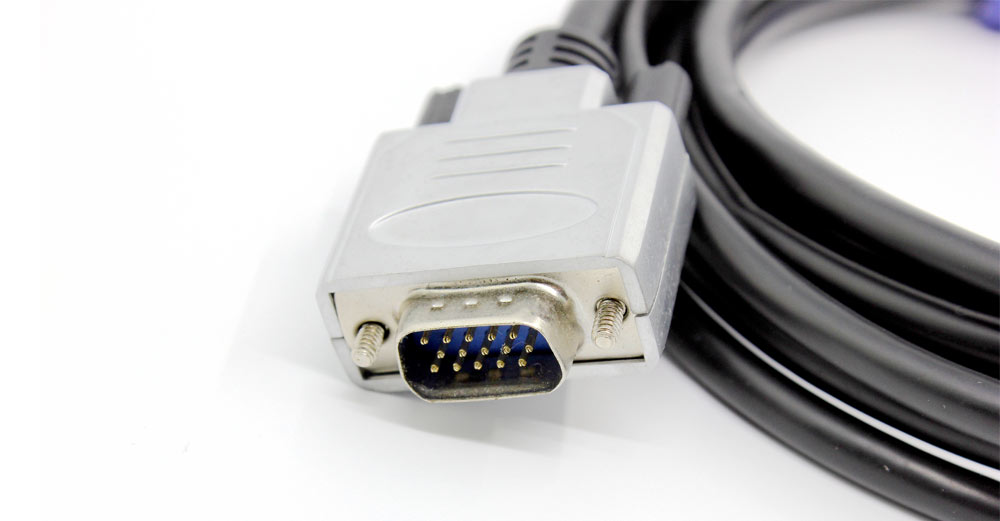

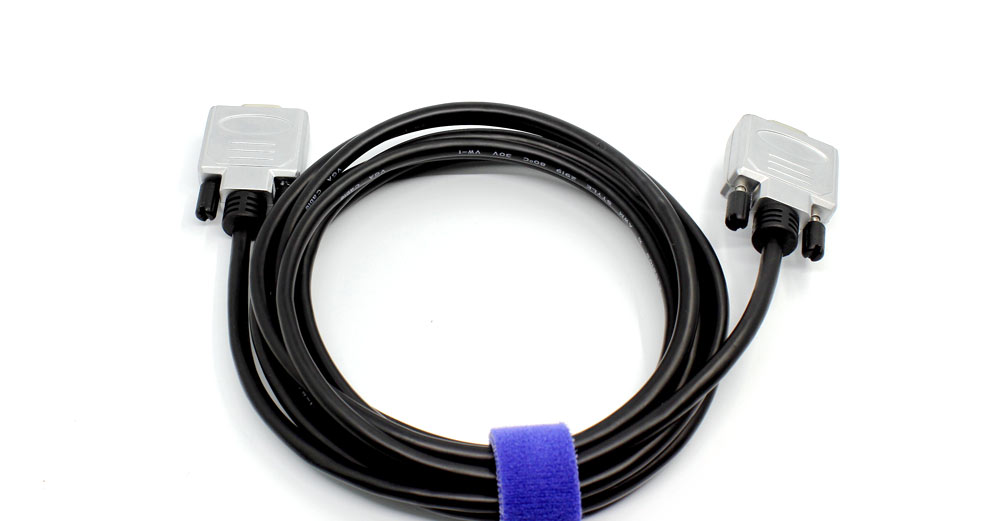

Umacable High Quality VGA Cable with Metal Housing is perfect for home theater or desktop audio video applications. Connects a VGA (Video Graphic Array) equipped laptop or desktop to an HDTV, Monitor, Projector, Flat Panel Display, Digital CRT Display or other devices with 15 Pin VGA input. It transmits video signals from your computer to a monitor for video streaming or gaming. Connects and configures your monitor for an Extended Desktop or Mirrored Display. Supports video resolutions up to 2048×1536 (QXGA). High quality materials and construction ensure a lifetime of dependable performance. Fully-shielded conductors provide complete immunity to EMI/RFI interference, and 24-K gold plated connectors ensure superior signal transfer. This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• HDB15 VGA video cable
• Durable and protective Metal housing Connectors
• Connects a standard VGA device to an HDTV, monitor, projector or other standard VGA device
• Support video resolutions up to 2048×1536 (QXGA), including 1920×1200 (WUXGA), 1600×1200 (UXGA), 1680×1050 (WSXGA+), 1400×1050 (SXGA+), 1280×800 (WXGA), 1024×768 (XGA), 800×600 (SVGA), 640×480 (VGA)
• The screw design makes sure a secure connection


Product Specifications

• Item No.: UMVG1002
• Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m 30m
• Available Gauge: 30AWG(1-5m) 28AWG( 7.5-20m) 26AWG (30m)
• Color: Black or Customized
• Nylon mesh: Customized
• Ferrite Core: Customized
• Connector: Gold or Nickel plated
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant
• Vendor : Umacable

Electrical Characteristics

• Maximum resolution supported – 2048×1536
• Nominal impedance – 75±5Ω
• Nominal capacitance – 28pF/m
• Conductor resistance – 376.96Ω/km
• Insulation resistance – 10MΩ/km at 20℃ DC-500V
• Dielectric strength – AC 500V/1 minute


Physical Characteristics:

• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE Compliant
Conductor 1 (3 conductors)
• Conductor Type – 30AWG Bare Copper
• Insulation – Foamed PE SKIN
• Drain Wire – 30AWG Bare Copper
• Shield – Aluminum Foil, 100% Coverage
Conductor 2 (9 conductors)
• Conductor Type – 30AWG Bare Copper
• Insulation – HDPE
Overall Cable
• Drain Wire – 30AWG Bare Copper
• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/5/0.12, Al/Mg
• Jacket – PVC, Black, O.D.: 6.0±0.2mm
Connectors
• Connector Type – HD 15 VGA Male
• Pin Construction – Phosphor Copper
• Injection – Zinc Alloy
• Plating – 1 µm Gold


Product Support

• Download the Technical specifications

Within 8 hours if all details are provided well .you can call us at 0086 574 8704 2335 for a urgent inquiry .
FREE sample can be provided soon if quotation are confirmed, shipping fee should paid by yourself.
1000 pcs per item or 3000 meter raw cables in a single specification.
Our normal delivery time for sample is 3-5 days, and for mass production is 15-25 days.
FOB, CIF, EXW, DDU, DDP are all available, we are also able to provide a cheapest and high efficient Transportation solutions for you .
For first time, we only accept T/T in deposit, after established stable and good business relationship, we accept L/C and Open Credit (OA), Paypal and West Union are also available.
We guarantee all our products a Lifetime Warranty.
