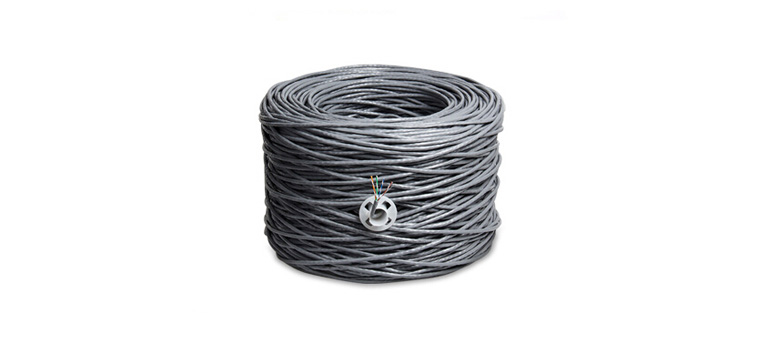

Umacable High Quality Cat5E F/UTP Shielded Network Cable is an ideal solution for making a network connecting in a noisy, EMI/RFI environment. This cable meets all of the ANSI/TIA-568-C.2 specifications. The F/UTP shielding structure provides protection from EMI/RFI noise and electromagnetic interference makes a well Attenuation and Crosstalk performance. This cable features markings in foot or meter, which marks the exact amount of cable remaining in the box, and a wide opening for the pull out design, which reduces tension on the wire as it is pulled during installation. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• High Quality CAT5E F/UTP Shielded Network Cable
• Al-Foil shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
• Meets ANSI/TIA-568-C.2 and ISO/IEC 11801 Specification
• Tested to 350 MHz and support 1000 Base-T Gigabit Ethernet
• Foot or Meter marked to show the amount of cable left in the box


Product Specifications

• Item No.: UMNW1002
• Available Length: 100m, 305m
• Available Gauge: 24AWG Solid
•Conductor: Bare Copper or Copper Clad Aluminum
•Color: Customized
• Jacket: PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing: Easy Pull Box
• Approval: RoHS Compliant
• Vendor: Umacable

Electrical Characteristics

• Impedance – 100±15(Ohms) @ 1-100MHz
• DC Resistance Unbalance (%) – Max 2.5
• DC Resistance 20℃ – 9.5 (Ohms/100m)
• Pair-to-Ground Capacitance Unbalance – 330(pF/100M)
• Insulation Resistance – >5000 MΩ*Km


Physical Characteristics:

• Dielectric Strength – DC 2500V 2S
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 24AWG Solid Bare Copper
• Insulation – HDPE
• Color – White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown
• Drain Wire – 24AWG Bare Copper
• Shield – Aluminum Foil, 100% Coverage
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 5.8±0.2mm

Nominal Transmission Characteristics:

Frequency RL(min) IL(min) DOP(max) Delay Skew (max) NEXT(min) PSNEXT(min) ACR-F(min) PSACR-F(min)
(Mhz) (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2.2 570 45 65 62 61 61
4 23.0 4.2 552 45 56 53 48 48
10 25.0 6.5 545 45 50 47 41 41
16 25.0 8.4 543 45 47 44 36 36
20 25.0 9.3 542 45 45 42 34 34
31.25 23.6 11.6 540 45 42 39 31 31
62.5 21.5 17.0 538 45 38 35 25 25
100 20.1 22.0 537 45 35 32 21 21



Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.
