Project Description

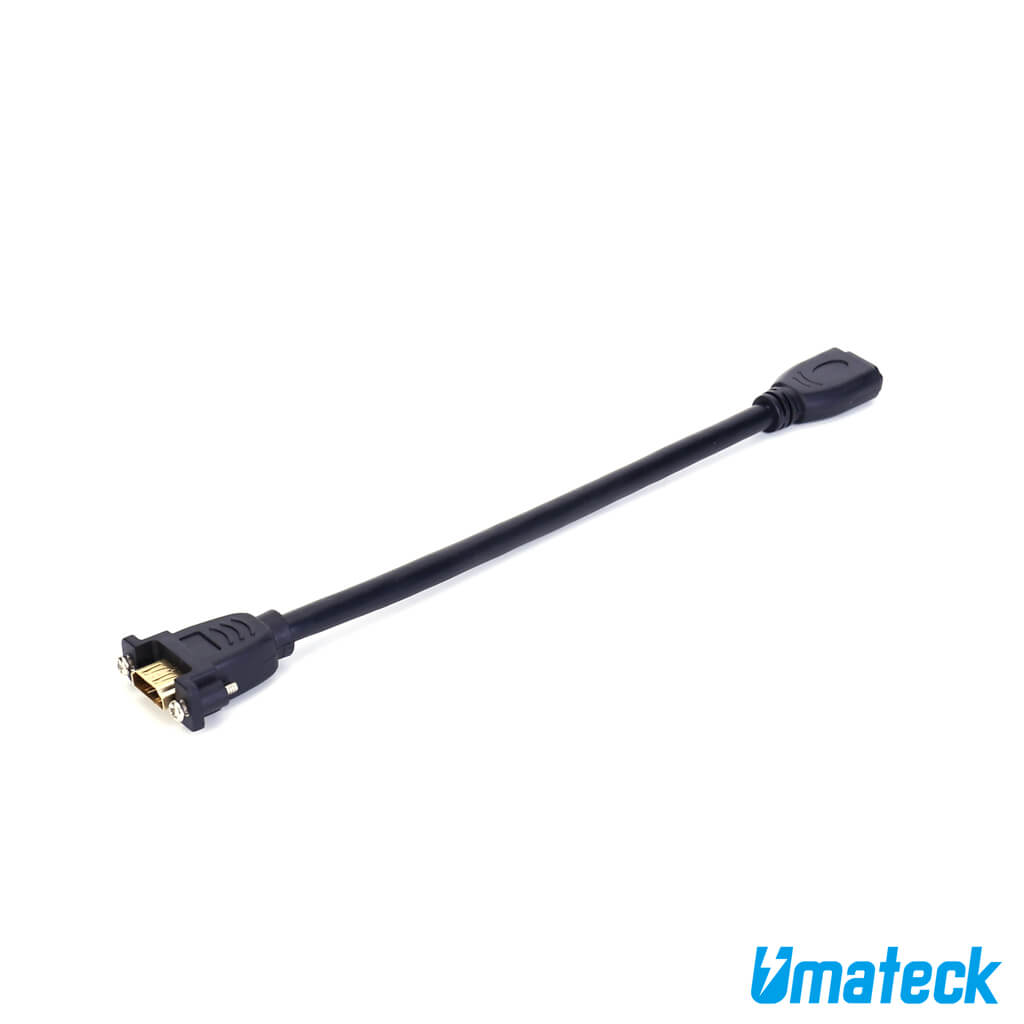

High Speed HDMI female to female panel mount cable, 0.2 meter HDMI socket cable, Gold plated connector, Supports the video resolutions up to 4K*2K@50/60 (2160p), Convenient way to combine two HDMI cables through a panel without any signal loss
Part # : UMPM2002
Connector 1 : HDMI female
Connector 2 : HDMI female with screw #4-40
MOQ: 500 PCS
Lead time: 15-30 days
Umateck High Quality HDMI Female to Female Panel Mount Cable is the perfect solution for combining two HDMI cables to achieve connectivity through a panel. This allows the user to provide display connectivity from a source that is contained within a secure location. The cable is short and designed for minimal signal loss. It supports the video resolutions up to 4K*2K@50/60 (2160p). High quality materials and construction ensure a lifetime of dependable performance. Fully-shielded conductors provide complete immunity to EMI/RFI interference, and 24-K gold plated connectors ensure superior signal transfer. This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by Umateck lifetime warranty.
Key Features
• High Speed HDMI Female to Female Panel Mount Cable
• The screw design helps to connect the device tightly
• Convenient way to combine two HDMI cables through a panel without any signal loss
• Bandwidth up to 18Gbps
• 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color™
High Speed HDMI Panel-Mount cable, female to female adapter cable
| Part # | UMPM2002 |
|---|---|
| Brand Name | Umateck |
| Category | High Speed HDMI Panel-Mount cable, female to female adapter cable |
| Length | 20 cm |
| Color | Black |
| Approval | CE, RoHS, REACH |
| Warranty | Lifetime |
| Package | Zip bag , color box , blister or Customized |
Electrical Characteristics
• Nominal Velocity of Propagation – 18Gbps
• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 100Ω
• Nominal Attenuation – 300kHz-825MHz – <5dB, 825MHz-2.475GHz – <5dB, 2.475GHz-4.125GHz – <12dB, 4.125GHz-5.1GHz – <20dB
Physical Characteristics:
•• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductor 1 (5 pair)
• Conductor Type – 28AWG Tinned Copper
• Insulation – Foamed PE SKIN
• Drain Wire – 28AWG Tinned Copper
• Shield – Aluminum Foil, 100% Coverage
Conductor 2 (4 conductors)
• Conductor Type – 28AWG Tinned Copper
• Insulation – HDPE
Overall Cable
• Drain Wire – 28AWG Bare Copper
• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/8/0.12, Al/Mg
• Jacket – PVC, Black, O.D.: 6.0±0.2mm
Connectors
• Connector Type – HDMI Type A Female
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – 1 µm Gold
