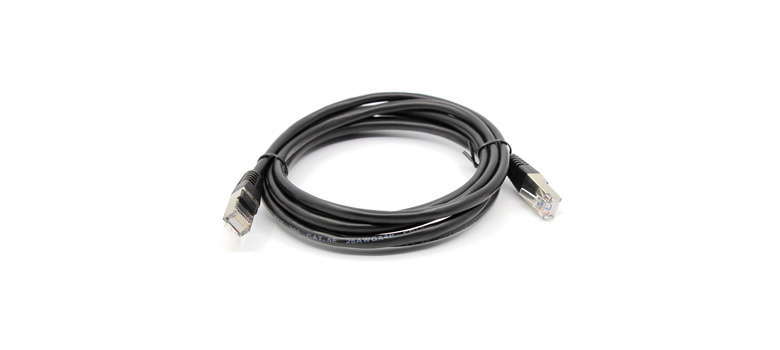

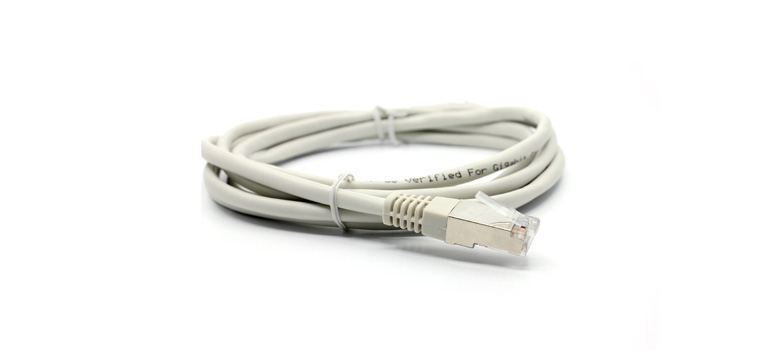

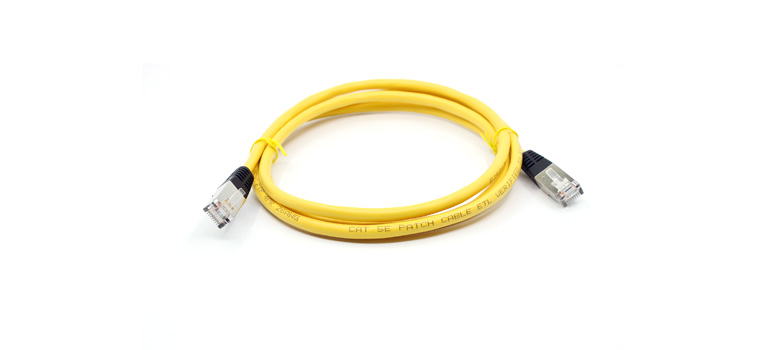

High Quality Cat5E F/UTP Shielded Patch Cable UMNW2002

Product Info

Product Description

Umacable High Quality Cat5E F/UTP Shielded Patch Cable is an ideal solution for connecting all kinds of LAN network components in a noisy, EMI/RFI environment. Build your home or office network with 1000 Base-T Gigabit Ethernet. The F/UTP shielding features an overall cable shield which provides protection from EMI/RFI noise and electromagnetic interference. This cable meets or exceeds Category 5E performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat5E F/UTP cable with high bandwidth of up to 350 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.

Key Features

• High Quality CAT5E F/UTP Shielded Patch Cable
• Al-Foil shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
• Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
• Provides outstanding transmission performance and low signal losses
• Tested to 350 MHz and support 1000 Base-T Gigabit Ethernet
• A wired Cat 5E patch cable is more reliable and secure than a wireless network for your internet connections

Product Specifications

• Item No.:	UMNW2001
• Available Length:	0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m 30m 50m 75m
• Available Gauge:	28AWG 26AWG 24AWG
•Conductor:	Bare Copper or Copper Clad Aluminum
•Color:	Customized
• Jacket:	PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing:	PE bag, Zip bag, Box, Hang card, Blister
• Approval:	RoHS Compliant
• Vendor:	Umacable

Electrical Characteristics

• Conductor DC Resistance – 89 Ohm/km (maximum)
• Insulation Resistance –100 Ohm/km (minimum)
• Dielectric Strength – 500 MV/m
• Propagation Delay –545ns/100m (maximum)
• Delay Skew – 45ns/100m (maximum)

Physical Characteristics:

• Voltage Rating –30V
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 26AWG Bare Copper
• Insulation – HDPE
• Color –White-Orange/Orange, White-Green/Green, White-Blue/Blue, White-Brown/Brown
• Drain Wire – 26AWG Bare Copper
• Shield – Aluminum Foil, 100% Coverage
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 5.8±0.2mm

Nominal Transmission Characteristics:

Frequency	Insertion Loss	NEXT	RL	ACR-N	ACR-F	PS NEXT	PSACR-N	PSACR-F
(Mhz)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)	(dB)
1	3	60.2	17.0	57.0	57.3	57.2	61	61
4	4.5	53.2	17.0	49.2	45.5	50.5	48	48
10	7.0	47.0	17.0	39.8	37.6	44.1	41	41
16	9.0	43.4	17.0	34.6	33.2	40.6	36	36
20	10.2	42.3	17.0	31.9	31.4	39.0	34	34
31.25	12.9	38.6	15.1	25.8	27.4	35.8	31	31
62.5	18.5	33.5	12.0	15.0	21.0	30.6	25	25
100	24.1	30.0	10.1	6.2	17.1	27.2	21	21
