Product Description

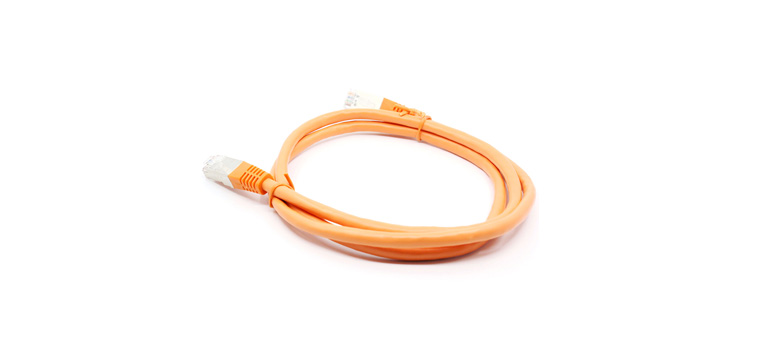

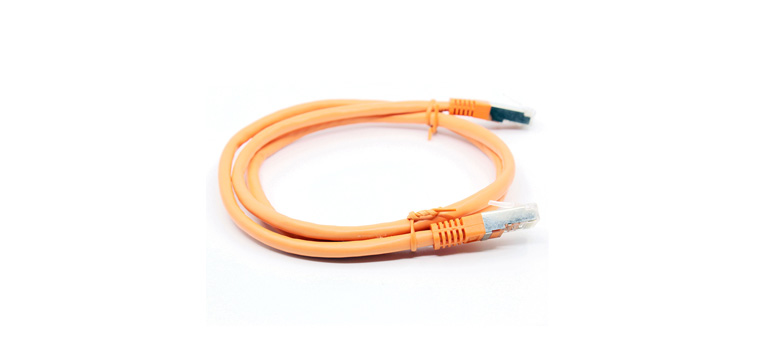

Umacable High Quality Cat5E SF/UTP Double Shielded Patch Cable is an ideal solution for connecting all kinds of LAN network components in a noisy, EMI/RFI environment. Build your home or office network with 1000 Base-T Gigabit Ethernet. The SF/UTP double shielding features an overall cable shield which provides protection from EMI/RFI noise and electromagnetic interference. This cable meets or exceeds Category 5E performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat5E SF/UTP cable with high bandwidth of up to 350 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.


Key Features

• High Quality CAT5E SF/UTP Double Shielded Patch Cable
• Al-Foil and Braid shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
• Meets or exceeds TIA/EIA-568-C.2 and ISO/IEC 11801 Specification
• Provides outstanding transmission performance and low signal losses
• Tested to 350 MHz and support 1000 Base-T Gigabit Ethernet
• A wired Cat 5E patch cable is more reliable and secure than a wireless network for your internet connections


Product Specifications

• Item No.: UMNW2003
• Available Length: 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m 30m 50m 75m
• Available Gauge: 28AWG 26AWG 24AWG
•Conductor: Bare Copper or Copper Clad Aluminum
•Color: Customized
• Jacket: PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing: PE bag, Zip bag, Box, Hang card, Blister
• Approval: RoHS Compliant
• Vendor: Umacable

Electrical Characteristics

• Conductor DC Resistance – 89Ohm/km (maximum)
• Insulation Resistance – 100Ohm/km (minimum)
• Dielectric Strength – 500MV/m
• Propagation Delay – 545ns/100m (maximum)
• Delay Skew – 45ns/100m (maximum)


Physical Characteristics:

• Voltage Rating –30V
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 26AWG Bare Copper
• Insulation – HDPE
• Color –White-Orange/Orange, White-Green/Green, White-Blue/Blue, White-Brown/Brown
• Braid – 16/5/0.12 Aluminum Magnesium
• Shield – Aluminum Foil, 100% Coverage
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 5.9±0.2mm

Nominal Transmission Characteristics:

Frequency Insertion Loss NEXT RL ACR-N ACR-F PS NEXT PSACR-N PSACR-F
(Mhz) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB)
1 3 60.2 17.0 57.0 57.3 57.2 61 61
4 4.5 53.2 17.0 49.2 45.5 50.5 48 48
10 7.0 47.0 17.0 39.8 37.6 44.1 41 41
16 9.0 43.4 17.0 34.6 33.2 40.6 36 36
20 10.2 42.3 17.0 31.9 31.4 39.0 34 34
31.25 12.9 38.6 15.1 25.8 27.4 35.8 31 31
62.5 18.5 33.5 12.0 15.0 21.0 30.6 25 25
100 24.1 30.0 10.1 6.2 17.1 27.2 21 21



Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.
